#Import necessary packages
import numpy as np
import matplotlib.pyplot as plt
import tensorflow as tf
import tensorflow.contrib as tfcontrib
from itertools import product
from tensorflow.python.keras import layers
from tensorflow.python.keras import optimizers
from tensorflow.python.keras import losses
from tensorflow.python.keras import models
from tensorflow.python.keras import backend as K
from tensorflow.keras.preprocessing.image import ImageDataGenerator
from scipy.ndimage.interpolation import map_coordinates
fullsize_training_inputs = np.load('training_inputs.npy')
fullsize_training_ground_truth = np.load('training_ground_truth.npy')
fullsize_testing_inputs = np.load('testing_inputs.npy')
fullsize_testing_ground_truth = np.load('testing_ground_truth.npy')
#Dice the tensor into smaller, square images
def stack_tensor(tensor,num_stack_H,num_stack_W,rotate=False):
'''
divides tensor of size (N,H,W,C) into more instances of smaller images (N*n^2,H/n,W/n,C)
tensor: A four dimensional tensor object or numpy array
num_stack: number of times to divide width and height
'''
#unpack values
N, H, W, C = tensor.shape
new_N = N*(num_stack_H*num_stack_W)
new_H = H//num_stack_H
new_W = W//num_stack_W
image_segments = product(range(num_stack_H), range(num_stack_W))
stacked_tensor = np.empty((new_N,new_H,new_W,C))
if rotate == True:
stacked_tensor = np.empty((new_N,new_W,new_H,C))
tensor = np.swapaxes(tensor,1,2)
image_segments = product(range(num_stack_W), range(num_stack_H))
new_H, new_W = new_W, new_H
new_n=0
for r, c in image_segments:
for n in range(N):
stacked_tensor[new_n,:,:,:] = tensor[n, r*new_H:(r+1)*new_H,c*new_W:(c+1)*new_W,:]
new_n += 1
return stacked_tensor
def preprocess_tensor(tensor):
'''
Applies common pre-processing transformations and returns the necessary constants
to apply the same transforms to validation and test data
'''
tensor_mean = np.mean(tensor,axis=0,keepdims=True)
preprocessed_tensor = tensor - tensor_mean
return preprocessed_tensor, tensor_mean
training_inputs = stack_tensor(fullsize_training_inputs,3,4)/255
training_ground_truth = stack_tensor(fullsize_training_ground_truth,3,4)/255
testing_inputs = stack_tensor(fullsize_testing_inputs,3,4)/255
testing_ground_truth = stack_tensor(fullsize_testing_ground_truth,3,4)/255
input_shape = training_inputs.shape
del fullsize_training_inputs
del fullsize_training_ground_truth
del fullsize_testing_inputs
del fullsize_testing_ground_truth
def conv_block(input_tensor, num_filters):
encoder = layers.Conv2D(filters=num_filters,kernel_size=(3, 3),padding='same')(input_tensor)
encoder = layers.BatchNormalization()(encoder)
encoder = layers.Activation('relu')(encoder)
encoder = layers.Conv2D(filters=num_filters,kernel_size=(3, 3),padding='same')(encoder)
encoder = layers.BatchNormalization()(encoder)
encoder = layers.Activation('relu')(encoder)
return encoder
def encoder_block(input_tensor, num_filters):
encoder = conv_block(input_tensor, num_filters)
encoder_pool = layers.MaxPooling2D(pool_size=(2, 2), strides=(2, 2))(encoder)
return encoder_pool, encoder
def decoder_block(input_tensor, concat_tensor, num_filters):
decoder = layers.Conv2DTranspose(filters=num_filters,kernel_size=(2, 2),strides=(2, 2),padding='same')(input_tensor)
decoder = layers.concatenate([concat_tensor, decoder], axis=-1)
decoder = layers.BatchNormalization()(decoder)
decoder = layers.Activation('relu')(decoder)
decoder = layers.Conv2D(filters=num_filters, kernel_size=(3, 3),padding='same')(decoder)
decoder = layers.BatchNormalization()(decoder)
decoder = layers.Activation('relu')(decoder)
decoder = layers.Conv2D(filters=num_filters, kernel_size=(3, 3),padding='same')(decoder)
decoder = layers.BatchNormalization()(decoder)
decoder = layers.Activation('relu')(decoder)
return decoder
inputs = layers.Input(shape = (training_inputs.shape[1:]))
# 256
encoder0_pool, encoder0 = encoder_block(inputs, 32)
# 128
encoder1_pool, encoder1 = encoder_block(encoder0_pool, 64)
# 64
encoder2_pool, encoder2 = encoder_block(encoder1_pool, 128)
# 32
encoder3_pool, encoder3 = encoder_block(encoder2_pool, 256)
# 16
encoder4_pool, encoder4 = encoder_block(encoder3_pool, 512)
# 8
center = conv_block(encoder4_pool, 1024)
# center
decoder4 = decoder_block(center, encoder4, 512)
# 16
decoder3 = decoder_block(decoder4, encoder3, 256)
# 32
decoder2 = decoder_block(decoder3, encoder2, 128)
# 64
decoder1 = decoder_block(decoder2, encoder1, 64)
# 128
decoder0 = decoder_block(decoder1, encoder0, 32)
# 256
outputs = layers.Conv2D(1, (1, 1), activation='sigmoid')(decoder0)
model = models.Model(inputs=[inputs], outputs=[outputs])
model.summary()
Total params: 31,125,921
Trainable params: 31,109,921
Non-trainable params: 16,000
__________________________________________________________________________________________________
from tensorflow.keras.utils import plot_model
plot_model(model,to_file = 'model_plot.png',rankdir='TB')
def dice_coeff(y_true, y_pred):
smooth = 1.
# Flatten
y_true_f = tf.reshape(y_true, [-1])
y_pred_f = tf.reshape(y_pred, [-1])
intersection = tf.reduce_sum(y_true_f * y_pred_f)
score = (2. * intersection + smooth) / (tf.reduce_sum(y_true_f) + tf.reduce_sum(y_pred_f) + smooth)
return score
training_inputs, training_mean = preprocess_tensor(training_inputs)
validation_inds = np.random.choice(range(training_inputs.shape[0]),50)
validation_inputs = testing_inputs[validation_inds,:,:,:] - training_mean
validation_ground_truth = testing_ground_truth[validation_inds,:,:,:]
#Initiate Adam optimizer with default values
opt = optimizers.Adam()
#Compile model
model.compile(optimizer=opt,
loss=losses.binary_crossentropy,
metrics=[dice_coeff])
#Some parameters
epochs = 1
batch_size = 10
#Define a model callback
save_model_path = 'tmp/weights_baseline.hdf5'
cp = tf.keras.callbacks.ModelCheckpoint(filepath=save_model_path,
monitor='val_loss',
save_best_only=True,
verbose=1)
image_datagen = ImageDataGenerator()
mask_datagen = ImageDataGenerator()
train_image_generator = image_datagen.flow(
training_inputs,
batch_size=batch_size)
train_mask_generator = mask_datagen.flow(
training_ground_truth,
batch_size=batch_size)
train_generator = (pair for pair in zip(train_image_generator,train_mask_generator))
#Fit the model
history = model.fit_generator(train_generator,
epochs = epochs,
steps_per_epoch = training_inputs.shape[0]//batch_size,
validation_data =(validation_inputs, validation_ground_truth),
shuffle=True,
callbacks=[cp]
)
197/198 [============================>.] - ETA: 22s - loss: 0.2163 - dice_coeff: 0.0572
Epoch 00001: val_loss improved from inf to 2.64773, saving model to tmp/weights_baseline.hdf5
198/198 [==============================] - 4392s 22s/step - loss: 0.2166 - dice_coeff: 0.0573 - val_loss: 2.6477 - val_dice_coeff: 0.0980
#Load best model
model.load_weights(save_model_path)
# Score trained model.
possible_test_inds = [i for i in range(training_inputs.shape[0]) if i not in validation_inds]
test_inds = np.random.choice(possible_test_inds,50,replace=False)
scores = model.evaluate(testing_inputs[test_inds,:,:,:]-training_mean,
testing_ground_truth[test_inds,:,:,:],
verbose=1)
print('Test loss:', scores[0],'\n Dice coefficient:', scores[1])
50/50 [==============================] - 10s 192ms/sample - loss: 2.4291 - dice_coeff: 0.0939
Test loss: 2.4290732383728026
Dice coefficient: 0.093900114
index = 0
_,H,W,_ = testing_inputs.shape
image = testing_inputs[test_inds[index],:,:,0]
predict_mask = np.zeros(shape=(H,W,4))
test_mask = np.zeros(shape=(H,W,4))
oops_mask = np.zeros(shape=(H,W,4))
predict_mask[:,:,0] = model.predict(testing_inputs[test_inds,:,:,:]-training_mean)[index][:,:,0] > 0.5
predict_mask[:,:,3] = 0.2*(predict_mask[:,:,0]>0.)
test_mask[:,:,0] = testing_ground_truth[test_inds[index],:,:,0]
test_mask[test_mask>1] = 1
test_mask[:,:,3] = 0.2*(test_mask[:,:,0]>0.)
oops_mask[:,:,0] = 0.5*(predict_mask[:,:,0] - test_mask[:,:,0])+0.5
oops_mask[:,:,3] = 0.4*((oops_mask[:,:,0]>0.51))+0.4*(oops_mask[:,:,0]<0.49)

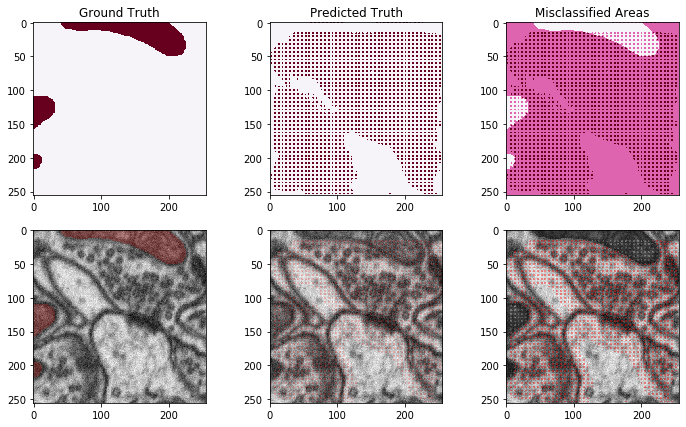

fig = plt.figure(figsize=[12,7])
ax1 = plt.subplot(2,3,1)
ax1.imshow(test_mask[:,:,0],cmap='PuRd')
ax1.set_title('Ground Truth')
ax2 = plt.subplot(2,3,2)
ax2.imshow(predict_mask[:,:,0],cmap='PuRd')
ax2.set_title('Predicted Truth')
ax3 = plt.subplot(2,3,3)
ax3.imshow(oops_mask[:,:,0],cmap='PuRd')
ax3.set_title('Misclassified Areas')
ax4 = plt.subplot(2,3,4)
ax4.imshow(image,cmap = 'gray',label='real_image')
ax4.imshow(test_mask,cmap='Reds')
ax5 = plt.subplot(2,3,5)
ax5.imshow(image,cmap = 'gray',label='predicted_image')
ax5.imshow(predict_mask,cmap='Reds')
ax6 = plt.subplot(2,3,6)
ax6.imshow(image,cmap = 'gray',label='mistakes_image')
ax6.imshow(oops_mask,cmap='PuRd')
plt.show()
